Scale Designs is pleased to offer:

DO IT YOURSELF (DIY) TANK SCALES

You provide the tank or container with matching connections (we’ll provide drawings with required matching dimensions) and we will provide the scale hardware and software for weighing tank contents.

Tank Scale Kits include:

(1.) 3 or 4 - Compression Mounts with NTEP Certified load cells
(2.) 1 - Stainless Steel signal trim junction box
(3.) 1 - 25’ hostile environment cable

After assembly you will need to connect a digital indicator (to display weight and other functions). We will provide indicator options or you can get your own.



Tank Mounts
Load Cells

Example # 1 (Includes mounts with load cells from 250# to 10K or up to 40,000 lbs with a 4-module kit. We can customize a solution with up to an 8-module kit with 125K load cells and capacities up to 1,000,000 lbs. Tell us what you want.



a_mount_Picture

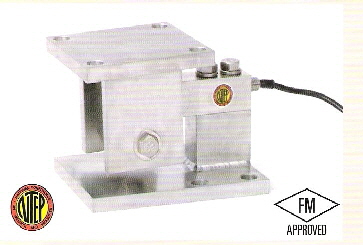

CG-23M-xx Load Cell Mount Assembly

Complete Tank Scale Kit includes:

  • · 3 or 4 CG-23 NTEP certified load cells
  • · 3 or 4 CG-23M compression mounts
  • · 1 SS-34AS stainless steel signal trim junction box
  • · 25’ hostile environment cable
  • Applications:
  • · Conveyors
  • · Light to medium-capacity tanks and hoppers
  • · Powder & bulk processing

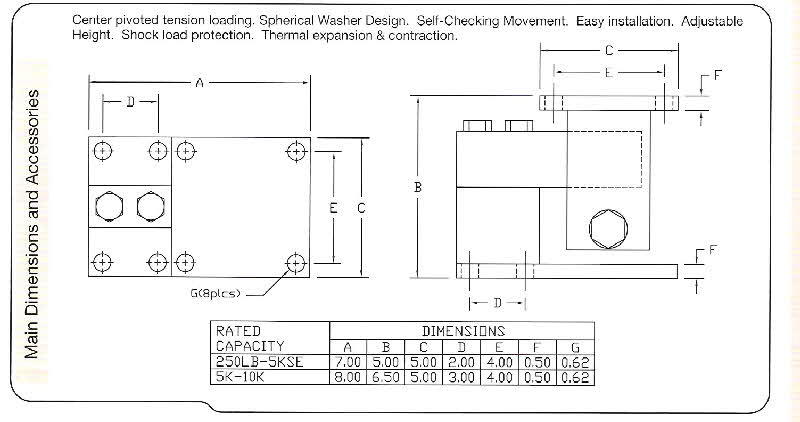

a_Mount_Dimensions

Alloy steel load cell with mild steel mount - with 250#, 500#, 1K, 1.5K, 2K, 2.5K, 4K, 5Kse load cells

3-module kit: .........................................................................$1,595.00
4-module kit...........................................................................$2,095.00



Alloy steel load cell with mild steel mount - with 5Kle or 10K load cells

3-module kit..........................................................................$1,995.00
4-module kit:.........................................................................$2,590.00



Stainless steel load cell with stainless steel mount - with 250#, 500#, 1K, 1.5K, 2K, 2.5K, 4K, 5Kse load cells

3-module kit..........................................................................$2,495.00
4-module kit..........................................................................$3,290.00



Stainless steel load cell with stainless steel mount - with 5Kle or 10K load cells

3-module kit...........................................................................$3,295.00
4-module kit:..........................................................................$3,695.00



Add an indicator that simply displays weight or add one with programmable macros, databases, data registers for mixing, matching and/or to control gates, conveyors, flow, etc. Do it yourself (DIY).
